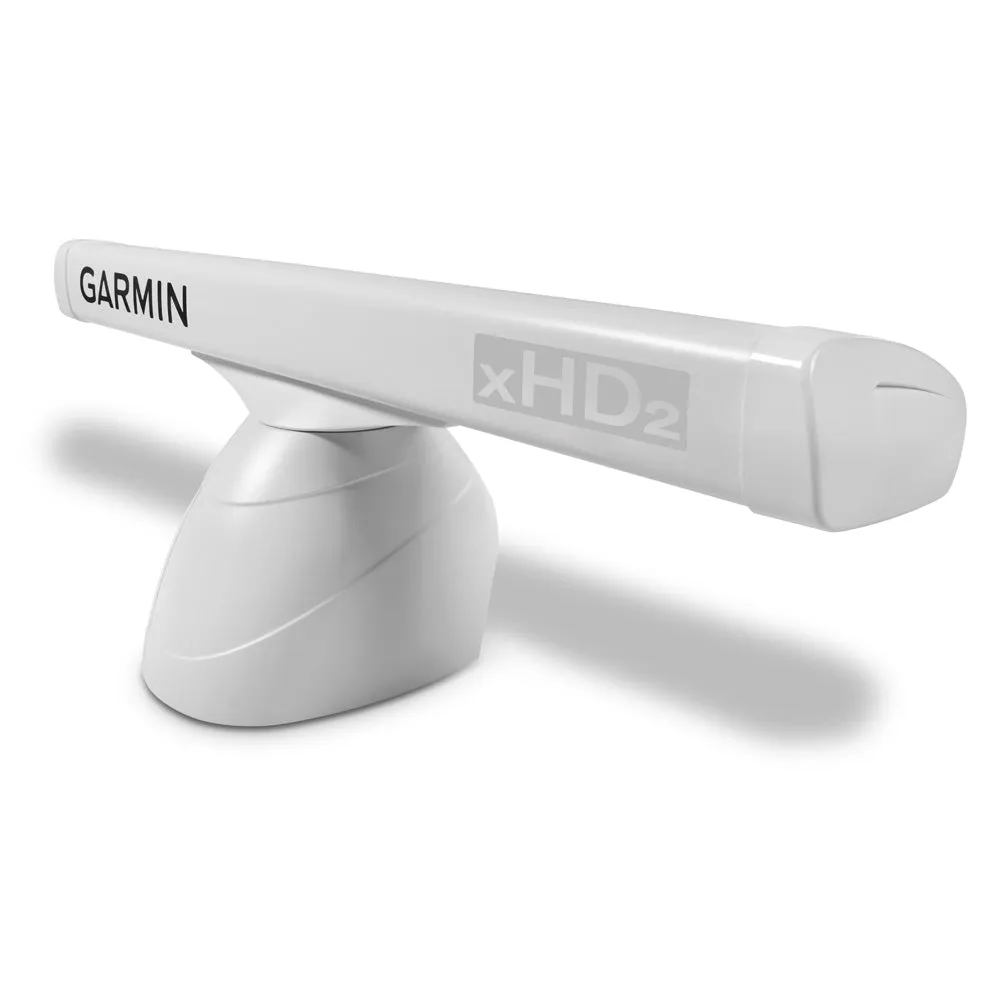

GMR™ 2526 xHD2 6' Open Array Radar & Pedestal - 25kW

Garmin's GMR™ 2526 xHD2 high-definition radar is designed for serious fishermen and long-range cruisers. It offers all the same features as the existing xHD2 open array radars, with the addition of Pulse Expansion and an increased maximum range of 96 nautical miles. This reliable radar is an invaluable aid to track land, other boats or weather and to help locate game fish.

Pulse Expansion

Pulse Expansion adds the ability to increase the duration of the transmit pulse, which maximizes the amount of energy on a target and provides larger targets on the chartplotter's display.

Features:

• Longer Ranger - Maximum range of 96 nautical miles
• Auto Bird Gain - Use Auto Bird Gain to find flocks of birds at the water's surface, indicating a hot fishing spot
• Dual Radar Support - Provides redundancy and ability for each display unit on the boat to select data from 1 or 2 different radar sources
• Quiet Operation - Quiet rotation and reliable operation
• 12V or 24V Systems - Using the included voltage converter, these radars work with either 12V or 24V systems
• Echo Trails - Leaves a historic "trail" on the screen to help quickly and easily identify moving targets and collison threats
• Dual Range - Allows for simultaneous close and long-range views, helping mariners keep a close eye on their immediate surroundings, while also knowing what is happening farther out
• Dynamic Auto Gain & Sea Filter - Continually adjusts to your surroundings to provide optimal performance in varying conditions
• MARPA - Mini-automatic radar plotting aid (MARPA) helps identify and track targets that might pose a collision threat (optional heading sensor required)
• 8-Bit True Color Display - Helps discriminate large targets from small ones

Includes:

• GMR 2526 xHD2 Radar
• Mounting Hardware Kit and Template
• External Voltage Converter
• Power Cable (15m)
• Cable Grommet
• Documentation and Software Update SDT Card

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Array Size (Inches): 72"
• Power - Output: 25kW
• Range - Max (Miles): 96nm
• Box Dimensions: 8"H x 12"W x 80"L WT: 93.8 lbs
• UPC: 753759223281
